Weather / Atmospheric Corrosion Resistant Steel
(Corten A/B)

Corten steel is up to eight times resistant to atmospheric corrosion compared to unalloyed steels and is characterized by its special alloy elements including copper, nickel, chrome and phosphor.
Enhanced corrosion resistance is based on the oxide layer called “patina” which forms naturally on the steel surface.

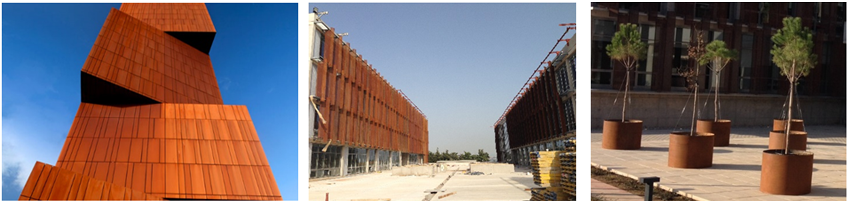

Corten is widely preferred in architectural applications for its elegantly brown-orange surface.

Typical Applications:

Corten A: Chimneys, tanks, boilers, oven parts, ship hulls, locomotives, wagons, trailers, trains and metros, containers, building facias, landscaping and architectural applications (sculptures, dust-bins,planters, streetlights, fences)
Corten B: This grade is more suitable for heavy load bearing applications or applications where high

GRADE		DIN NO	YIELD (Reh) min	TENSILE (Rm)	°C	IMPACT TEST VALUES ENERGY (J) k = 16mm
S355J0WP	CORTEN A	1.8945	355	485	0	27
S355J2WP	CORTEN A	1.8946	355	485	-20	27
S355J0W	CORTEN B	1.8959	355	485	0	27
S355J2W	CORTEN B	1.8965	355	485	-20	27

---

	THICKNESS
CORTEN A (Cold Rolled)	0,6 - 0,8 - 1 - 1,2 - 1,5 - 1,7 - 2 mm
CORTEN A (Hot Rolled)	2 - 2,5 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 12 - 15 - 20 …. 120 mm
CORTEN B (Hot Rolled)	2 - 2,5 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 12 - 15 - 20 …. 60 mm

---

	C	Si	Mn	P	S	Al	V	Cu	Cr	Ni
CORTEN A	0.12 max.	0.25-0.75	0.20-0.50	0.07-0.15	0.030 max.	0.015-0.06	-	0.25-0.55	0.50-1.25	0.65 max.
CORTEN B	0.19 max.	0.30-0.65	0.80-1.25	0.035 max.	0.030 max.	0.020-0.06	0.02-0.10	0.25-0.40	0.40-0.65	0.40 max.
