Carbon Steel Long Products

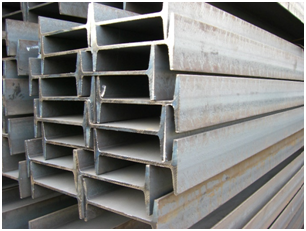

BEAMS AND SECTIONS

MATERIAL SUPPLIED	DIMENSION	GRADE	LENGTH
HEA	100 - 1000 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
HEB	100 - 1000 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
HEM	100 - 1000 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
HD	260 - 360 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
HL	920 - 1000 - 1100 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
IPE	80 - 750 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
IPN	80 - 600 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
UPN	80 - 400 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
UPE	80 - 400 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
U	40 X 20 - 65 X 42 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
UC	152 X 152 - 305 X 305 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
UB	127 X 75 - 533 X 210 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
PFC	100 X 50 - 300 X 100 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM

MERCHANT BARS

MATERIAL SUPPLIED	DIMENSION	GRADE	LENGTH
EQUAL ANGLES	20 X 20 X 3 - 300 X 300 X 38 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
UNEQUAL ANGLES	30 X 20 X 3 - 250 X 90 X 16 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
SQUARE BAR	8 - 300 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM

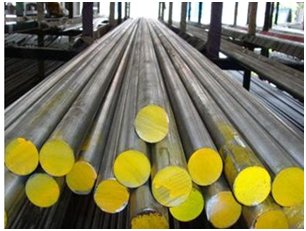

ROUND BAR	8 - 600 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
FLAT BAR	15 - 600 MM (THICKNESS 3 - 100 MM)	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM
T BAR	20 X 20 X 3 - 140 X 140 X 15 MM	S235JR S355J2+AR / M / N S355ML 16Mo3	6000 - 18000 MM

---

MATERIAL SUPPLIED	DIMENSION	GRADE
CRANE RAIL	A45 - A150	6000 - 12000 MM
RAILWAY RAIL	S10 - S64	6000 - 12000 MM

---

SQUARE, RECTANGULAR, CIRCULAR HOLLOW SECTIONS

• Hollow sections can be supplied from stock or new production in welded or seamless form as hot rolled or cold rolled.
• Hollow sections can be cut-to-length.

---

SQUARE HOLLOW SECTIONS

DIMENSIONS	STANDARD	TYPE	GRADE	LENGTH
30 X 30 - 400 X 400 MM	EN 10210 - HOT ROLLED	SEAMLESS	S235JRH - S355J2H - S460NH	6000 - 18000 MM
30 X 30 - 400 X 400 MM	EN 10210 - HOT FORMED	ERW	S235JRH - S355J2H - S460NH	6000 - 18000 MM
30 X 30 - 400 X 400 MM	EN 10219 - COLD FORMED	ERW	S235JRH - S355J2H - S460NH	6000 - 18000 MM

---

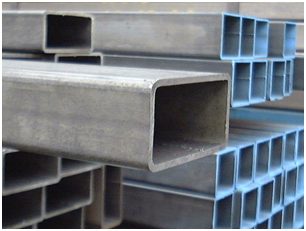

RECTANGULAR HOLLOW SECTIONS

DIMENSIONS	STANDARD	TYPE	GRADE	LENGTH
40 X 20 - 600 X 400 MM	EN 10210 - HOT ROLLED	SEAMLESS	S235JRH - S355J2H - S460NH	6000 - 18000 MM
40 X 20 - 600 X 400 MM	EN 10210 - HOT FORMED	ERW	S235JRH - S355J2H - S460NH	6000 - 18000 MM
40 X 20 - 600 X 400 MM	EN 10219 - COLD FORMED	ERW	S235JRH - S355J2H - S460NH	6000 - 18000 MM

---

ROUND HOLLOW SECTIONS

DIMENSIONS	STANDARD	TYPE	GRADE	LENGTH
21.3 X 1.8 - 660 X 25.0 MM	EN 10210 - HOT ROLLED	SEAMLESS	S235JRH - S355J2H - S460NH	6000 - 18000 MM
21.3 X 1.8 - 660 X 25.0 MM	EN 10210 - HOT FORMED	ERW	S235JRH - S355J2H - S460NH	6000 - 18000 MM
21.3 X 1.8 - 660 X 25.0 MM	EN 10219 - COLD FORMED	ERW	S235JRH - S355J2H - S460NH	6000 - 18000 MM
